Item Number:
Lithium Ca/Ca, Ca/Ag, AGM, GEL and conventional lead acid battery types covered
Customisable Interface to battery BMS systems
Customisable charge profiles
50A Constant output function for diagnostic support
3-stage charging: CI-CV-Float
Short Circuit shutdown
Reverse Polarity Protection

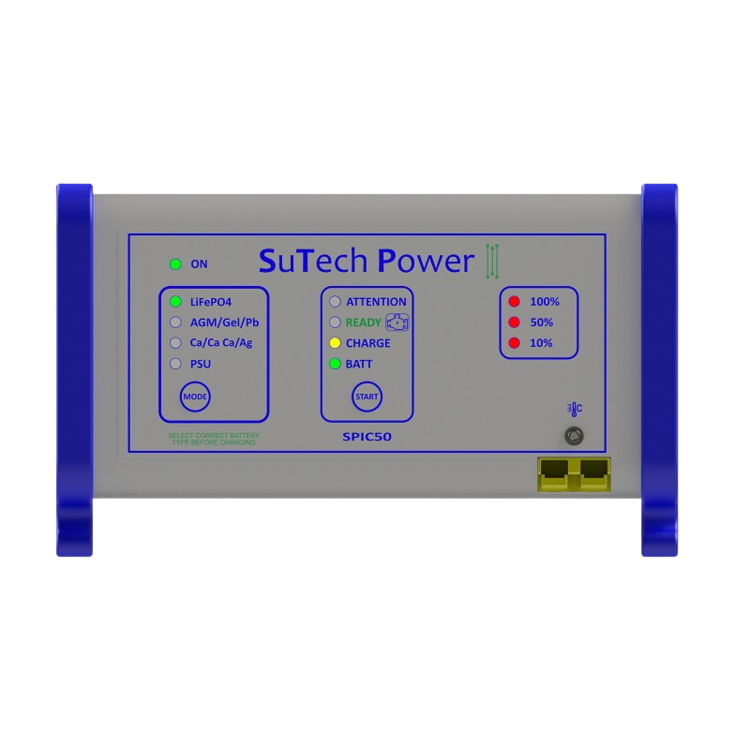

Introducing the new SPIC-50 Battery Charger.
Lithium Ca/Ca, Ca/Ag, AGM, GEL and conventional lead acid battery types covered
Customisable Interface to battery BMS systems
Customisable charge profiles
50A Constant output function for diagnostic support
3-stage charging: CI-CV-Float
Short Circuit shutdown
Reverse Polarity Protection
Soft start
Fast constant current bulk charge
Constant voltage float/standby
Features a customisable interface to the battery BMS system with LIN bus support
Temperature adjusted charge profile for safe Lithium battery charging
Output leads zero volts until the battery is connected and the charge process started
LiFePO4 Compatible
INPUT: 100-240v AC
WEIGHT: 3.8kg
SIZE: 264 x 152 x 83 mm
1 Supplied
