AC/DC TIG welder, mobile and powerful. High pulse and low pulse welding, MIX-TIG and spot welding. Synergy welding with the easy-to-use front input system. Designed as a self explanatory system.

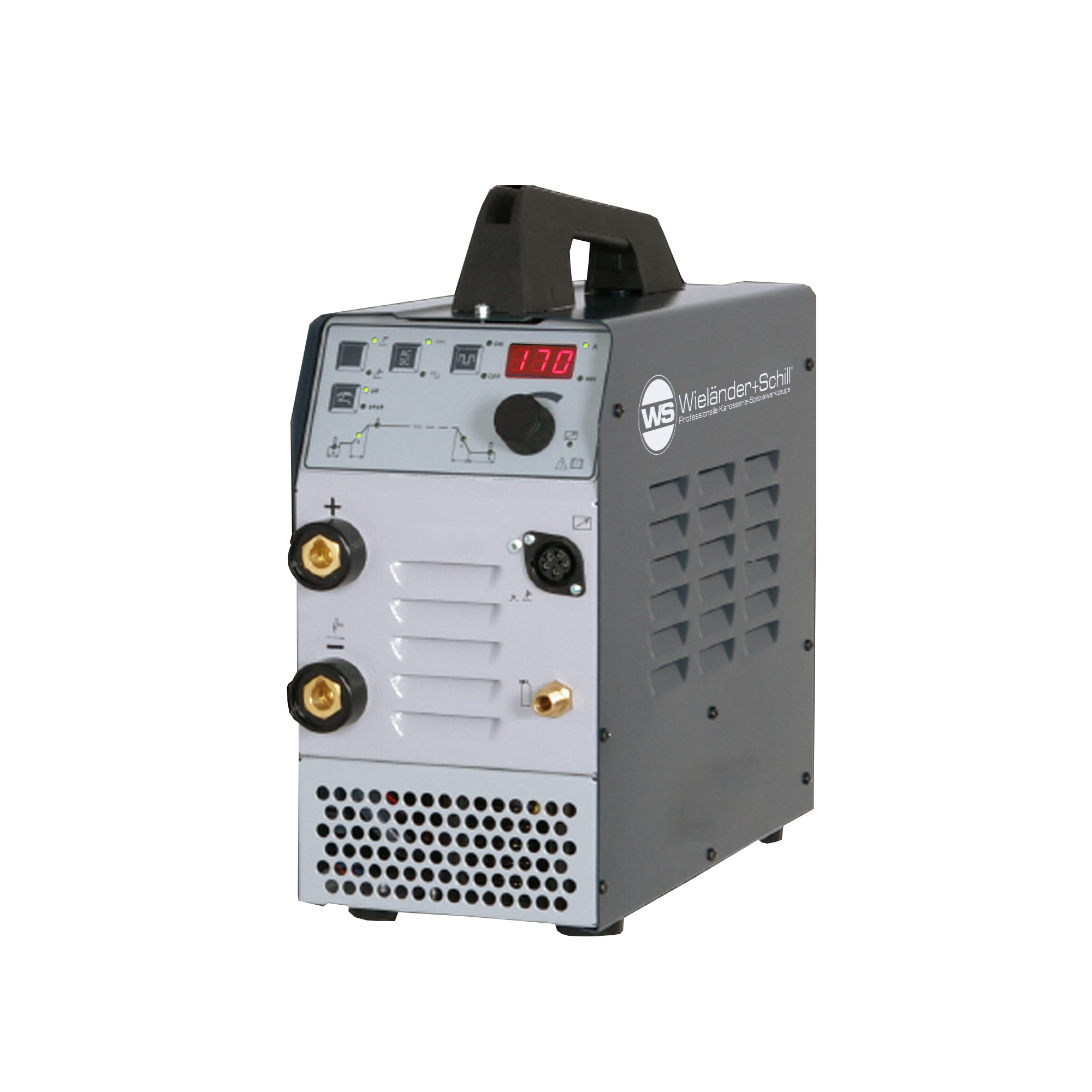

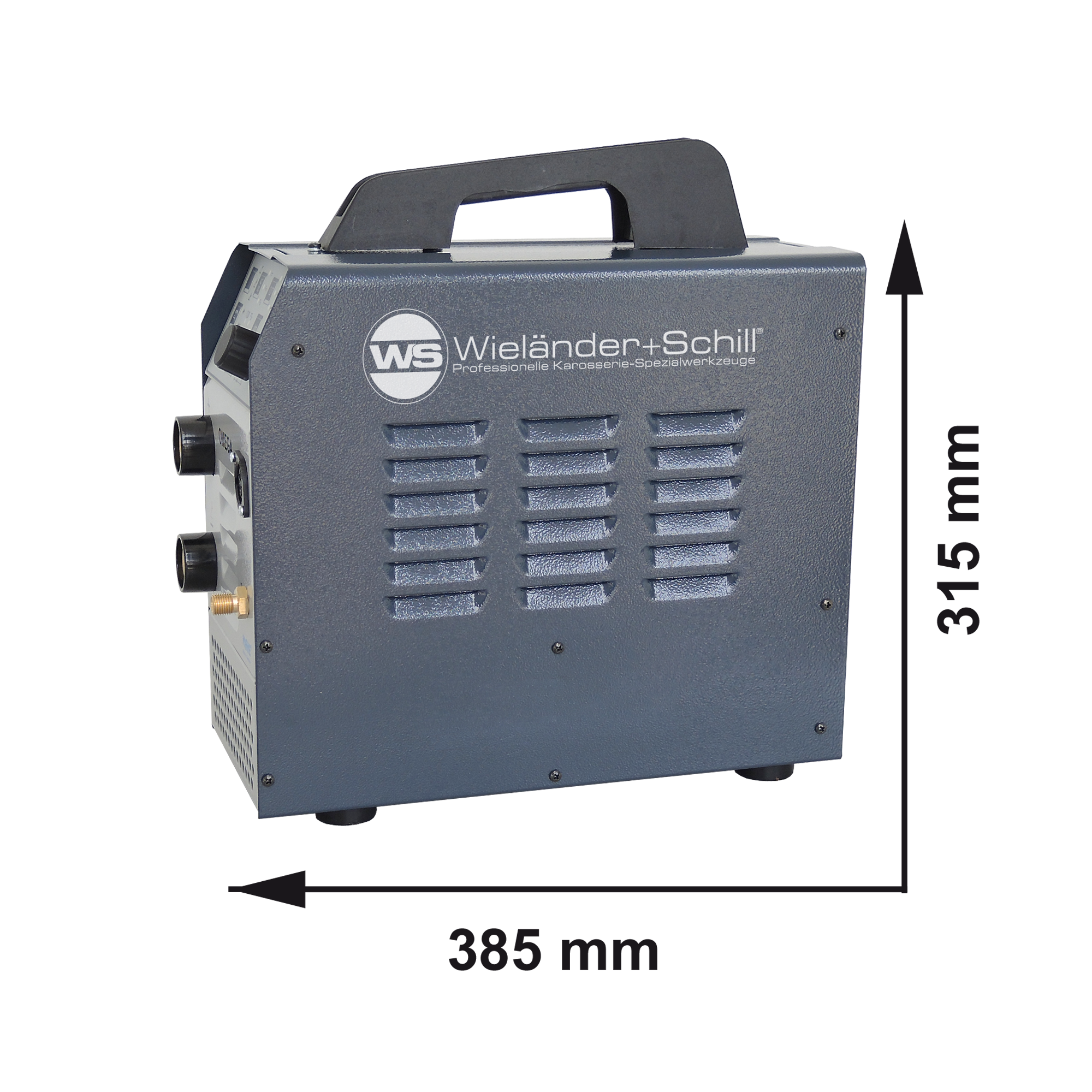

Product information “WS TIG 200 Welding Machine”

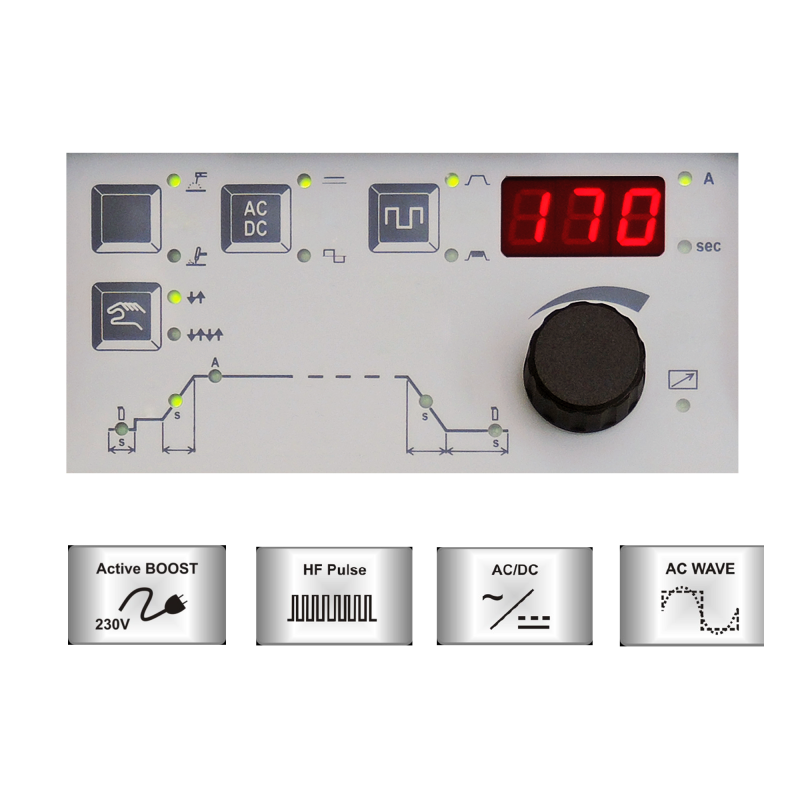

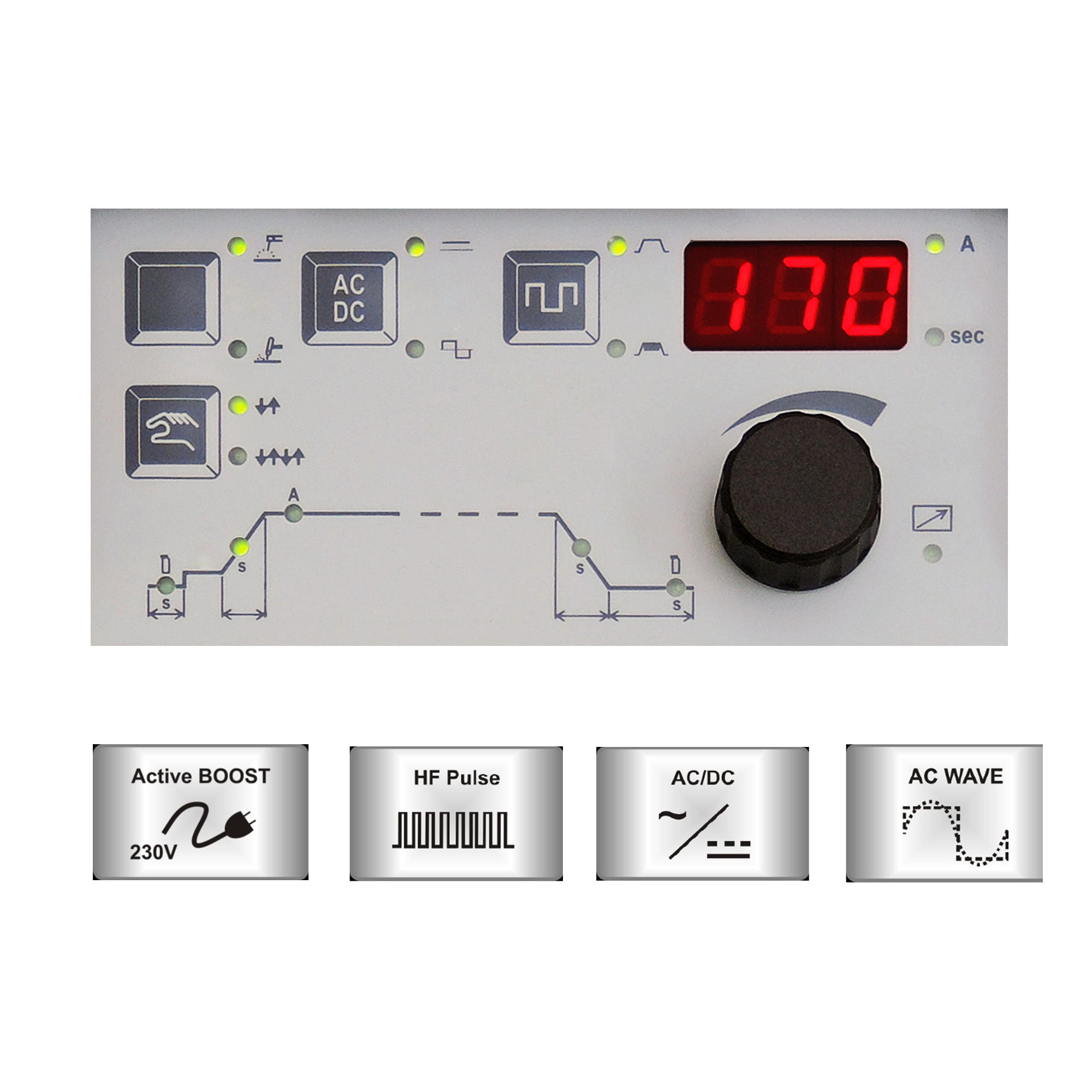

• AC/DC – dynamic impulse arc for more productivity. • Easy operation• Automatic pulse adjustment• TIG and MMA welding• Current modulation automatically• 5 meter supply cable• Digital volt and amp display• Synergy settings• Active Boost System
Packing unit: 1 pc.
Supply voltage: 230 V (+10%/20%)
Voltage range: 4-200A
Power factor: 0,75 @ 170A/26,8 V
Efficiency: 87 %
Temperature class: H (180°C) / S
Power supply (Cu): 3 x 2,5 mm²
Fuse: 16 A time-lag
Continuous output: 110A
Open-circuit voltage: 68V
Certificatons: CE
Welding current: AC/DC

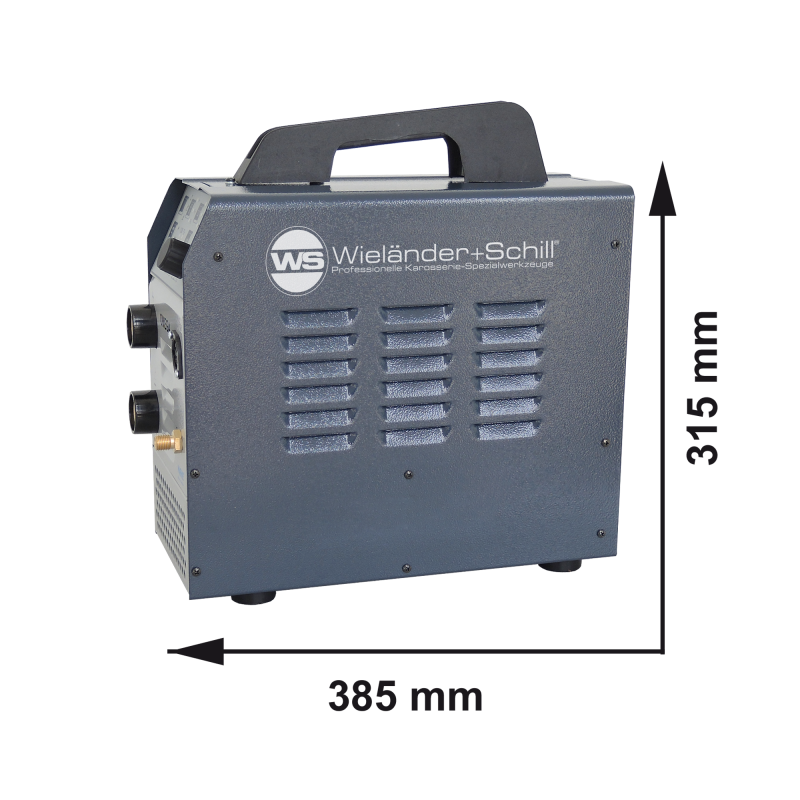

LängexBreitexHöhe: 385x173x315 mm
Net weight: 17,000 kg
Lenght: 5 m (power cable)
Working temperature: -10°C…+40°C
Protecton category: IP23
Frequency: 50/60 Hz
Temperature range: -40°C…+80°C (Lager)

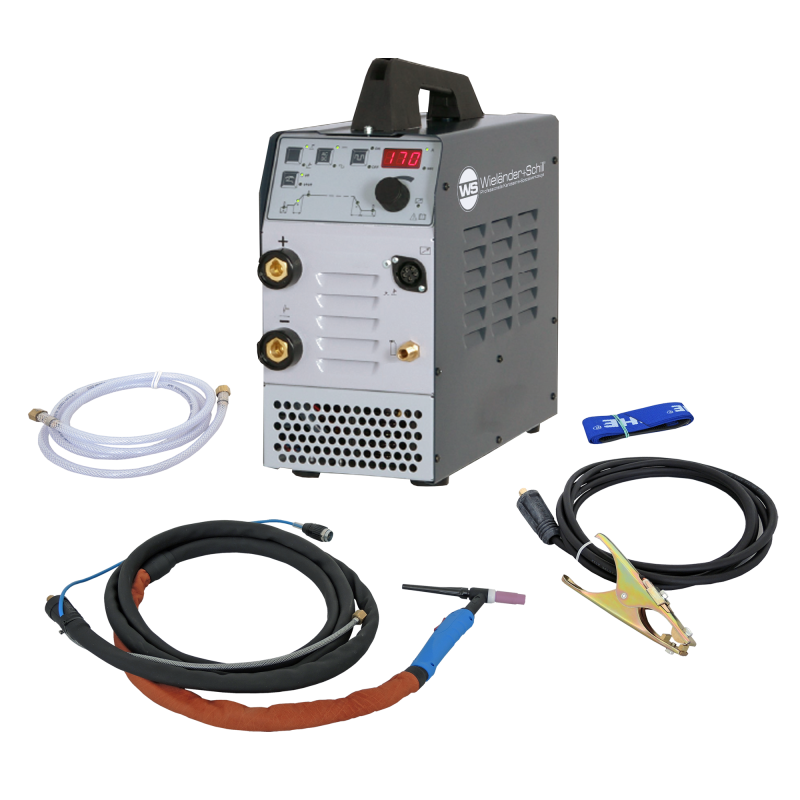

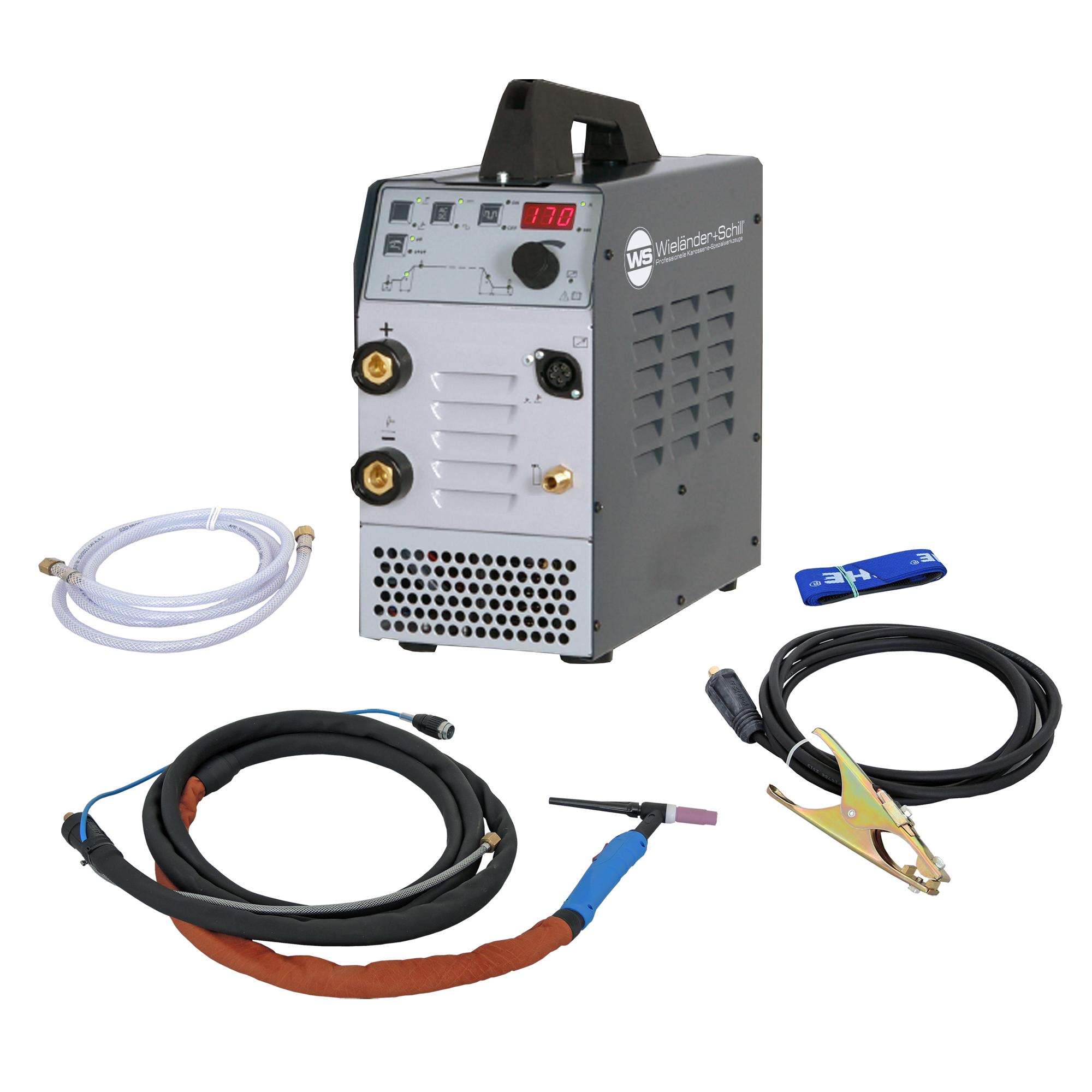

With TIG torch SR26 4 m, earth cablel 4 m and manual
