Item Number:

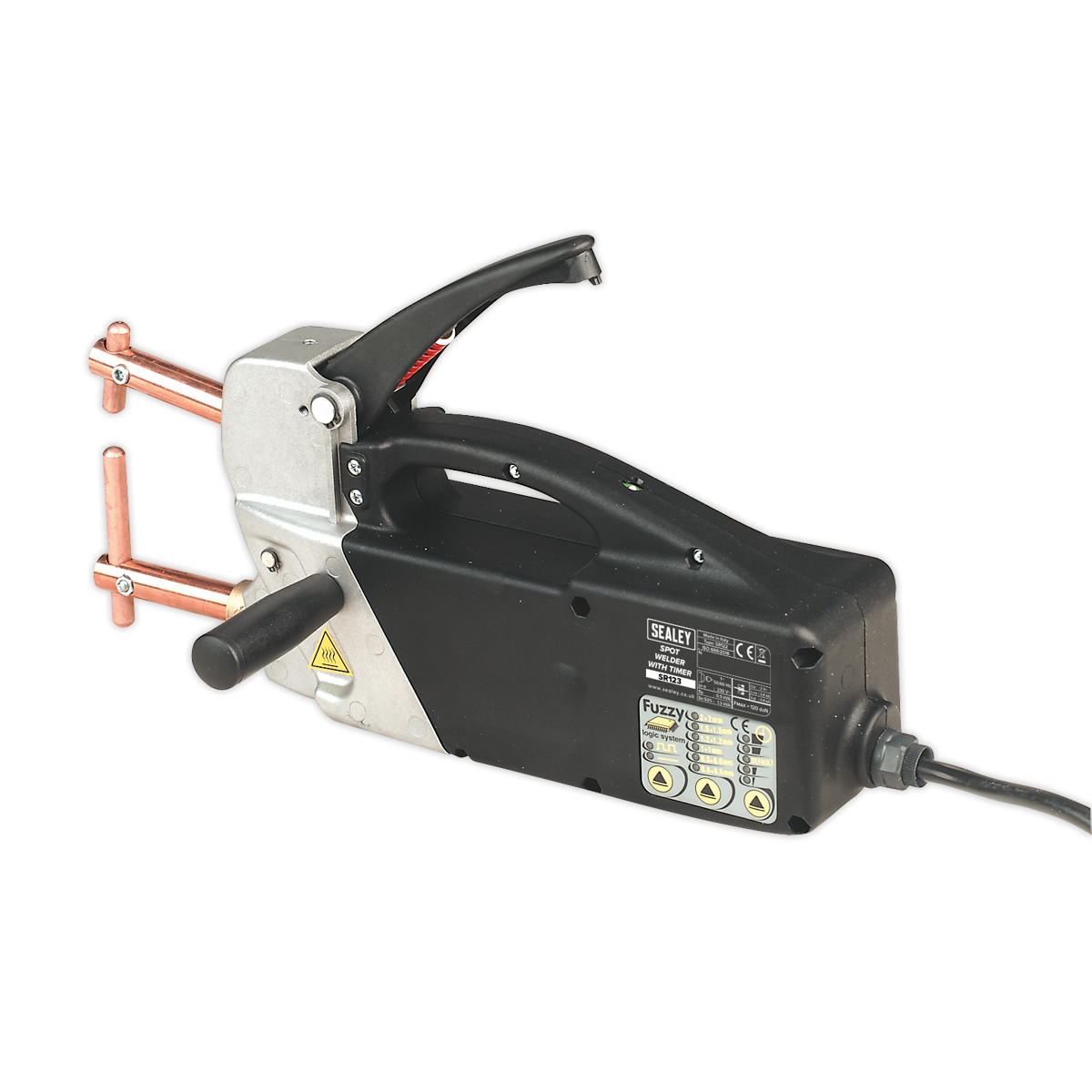

• Semi-automatic spot welder.
• Integral electronic control allows operator to select thickness of material while automatically calculating the optimum weld duration.
• Also features pulse mode for use on high stress steels commonly found in modern vehicle construction.
• All automatically selected parameters may be overridden by the operator if required.
• Composite casing and handle reduce heat transfer for operator comfort.
• Die-cast aluminium head and chassis reduces overall weight for improved handling.
• Fully adjustable jaw pressure from 40kg to 120kg enables close control of weld quality.
• Supply: 230V-25A (Plug not included).
• Supplied with 120mm welding arms, electrodes and side handle.
• Made in Europe.
Original price was: £1,099.95.£1,031.95Current price is: £1,031.95.
• Semi-automatic spot welder.
• Integral electronic control allows operator to select thickness of material while automatically calculating the optimum weld duration.
• Also features pulse mode for use on high stress steels commonly found in modern vehicle construction.
• All automatically selected parameters may be overridden by the operator if required.
• Composite casing and handle reduce heat transfer for operator comfort.
• Die-cast aluminium head and chassis reduces overall weight for improved handling.
• Fully adjustable jaw pressure from 40kg to 120kg enables close control of weld quality.
• Supply: 230V-25A (Plug not included).
• Supplied with 120mm welding arms, electrodes and side handle.
• Made in Europe.
Nett Weight: 11kg
Supply: 230V
Capacity: 2 + 2mm
Maximum Absorbed Power: 13kW
Mains Fuse: 25A
Welding Current (Maximum): 6300A
Duty Cycle: 1.5%
Insulation Class: B
Weight: 11kg
