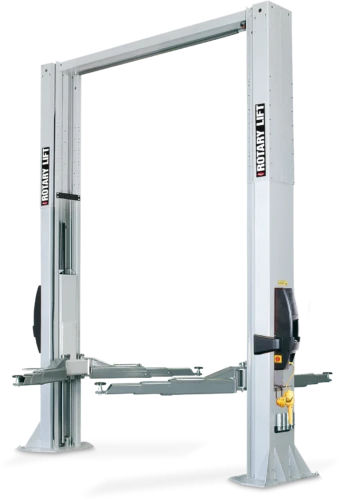

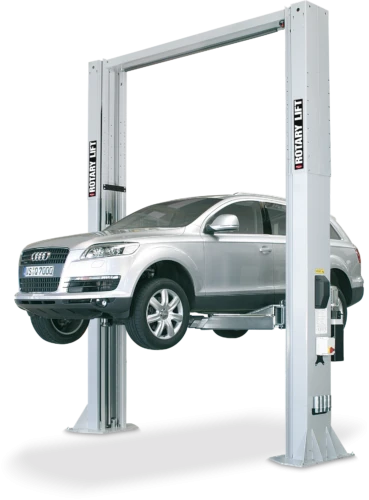

Rotary 2 Post Lift 6.5t – SPO65E-LWB

The 3PSS Concept (3 Phase Security System) includes:
Mechanical safety latches integrated on both sides with automatic actuation
Load-free synchronization pulleys secure the load during the lifting and lowering process
Hydraulic system secured by non-return valve including maintenance-free high-pressure cylinder in both posts

The maximum drive-through width with minimum external dimensions and the construction without a base frame ensure problem-free access to the lifting platform.

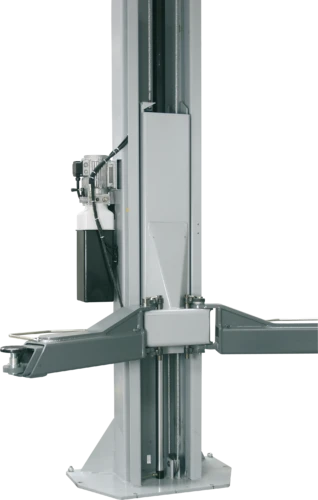

The double S-profile of the lifting posts enables maximum stability with minimum space requirement. The contact area of the lifting carriages guided in the lifting posts is significantly increased too.

The rotating plates are pluggable and can be extended or replaced with attachments in a stable and cost-effective manner.

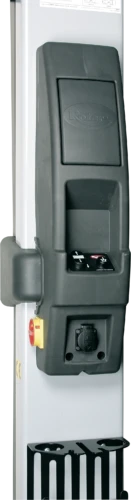

For a plus in ergonomics and economy, the 2nd control panel is standard on the SPO55. One control unit is equipped with a 220 V connection (fused with 16 ampere for electric hand tools) and the second with compressed air preparation.

The upper safety switch-off effectively protects vehicles with a higher overall height from damage during lifting.

The electro-hydraulic design with only one unit ensures energy-saving operation with fast lifting and lowering times.

Flanged to the upper part of the lifting column, the unit is protected from external influences and allows more freedom of movement.

Rotary Hydraulic stands for maximum service-friendliness with minimum operating costs

The support arms are automatically locked when lifting. Once the platform is completely lowered, this locking device is released automatically. The particularly fine grid and a manual unlocking function extend the ease of operation.
