Item Number:

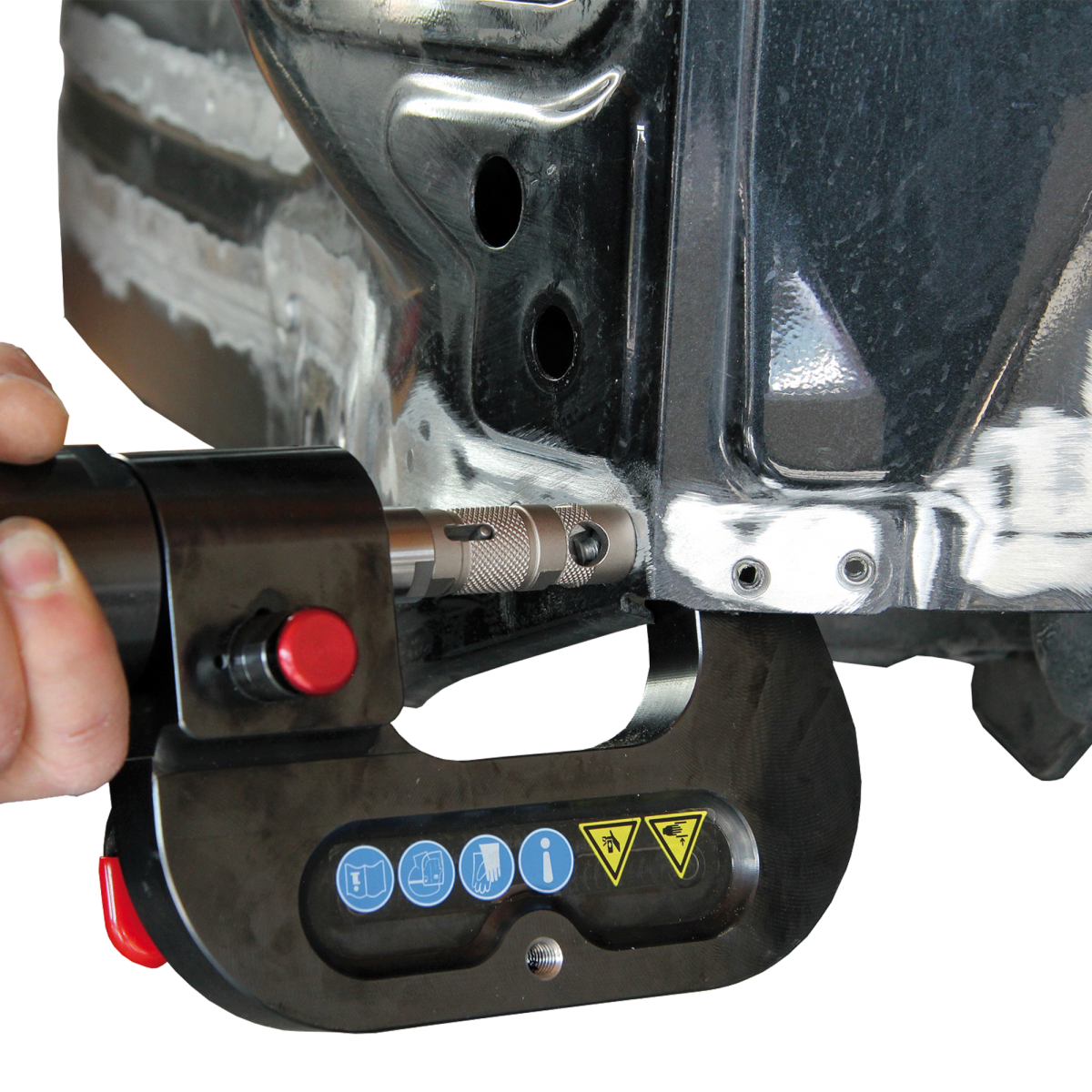

This XPress 800 modular riveting system is an “All-in-One” solution that can be used for many different riveting applications, including self-piercing rivets, blind rivets and rivet nuts, using specific hydraulic cylinders, adapters and C-Arms.
The Xpress 800 Basic Set, comes with one small C-Arm and is primarily for self-piercing rivets and flow form rivets.
£3,995.00
• 8 Tonne clamping pressure – to cope with high strength steels and large thicknesses and ensure that your rivets are correctly installed. Capacity can be increased to 12 tonne.
• Variable speed – for greater control
• Quick change tooling – without the need for spanners
• Easy to use
• Increases the speed and efficiency in your body shop
• Enables great accessibility on jobs
• Modular – Add to the tooling attachments as you need them
• 8 Tonne clamping pressure – to cope with high strength steels and large thicknesses and ensure that your rivets are correctly installed. Capacity can be increased to 12 tonne.
• Variable speed – for greater control
• Quick change tooling – without the need for spanners
• Easy to use
• Increases the speed and efficiency in your body shop
• Enables great accessibility on jobs
• Modular – Add to the tooling attachments as you need them8 Tonne clamping pressure – to cope with high strength steels and large thicknesses and ensure that your rivets are correctly installed. Capacity can be increased to 12 tonne.
Variable speed – for greater control
Quick change tooling – without the need for spanners
Easy to use
Increases the speed and efficiency in your body shop
Enables great accessibility on jobs
Add to the tooling attachments as you need them
Packing unit: 1 set
Vibration: < 2,5 m/s²
Air quality (ISO): ISO 8573-1
Working pressure: 6 bar / 87 psi
Noise level: 75 dB(A)
Oil Viscosity: 22-36 mm²/s (40°C)
Pressure max.: 800 bar
Complete Volume: 100 cm³
Net weight: 33.00
Gross weight: 33.00
Working temperature: 5-50 °C/41-122°F
XPress 800 Power Pack
XPress 800 Cylinder SSC35/25
XPress 800 C-arm GC 80/40
XPress 800 Tool Box RS-03
Transport case
Manual
