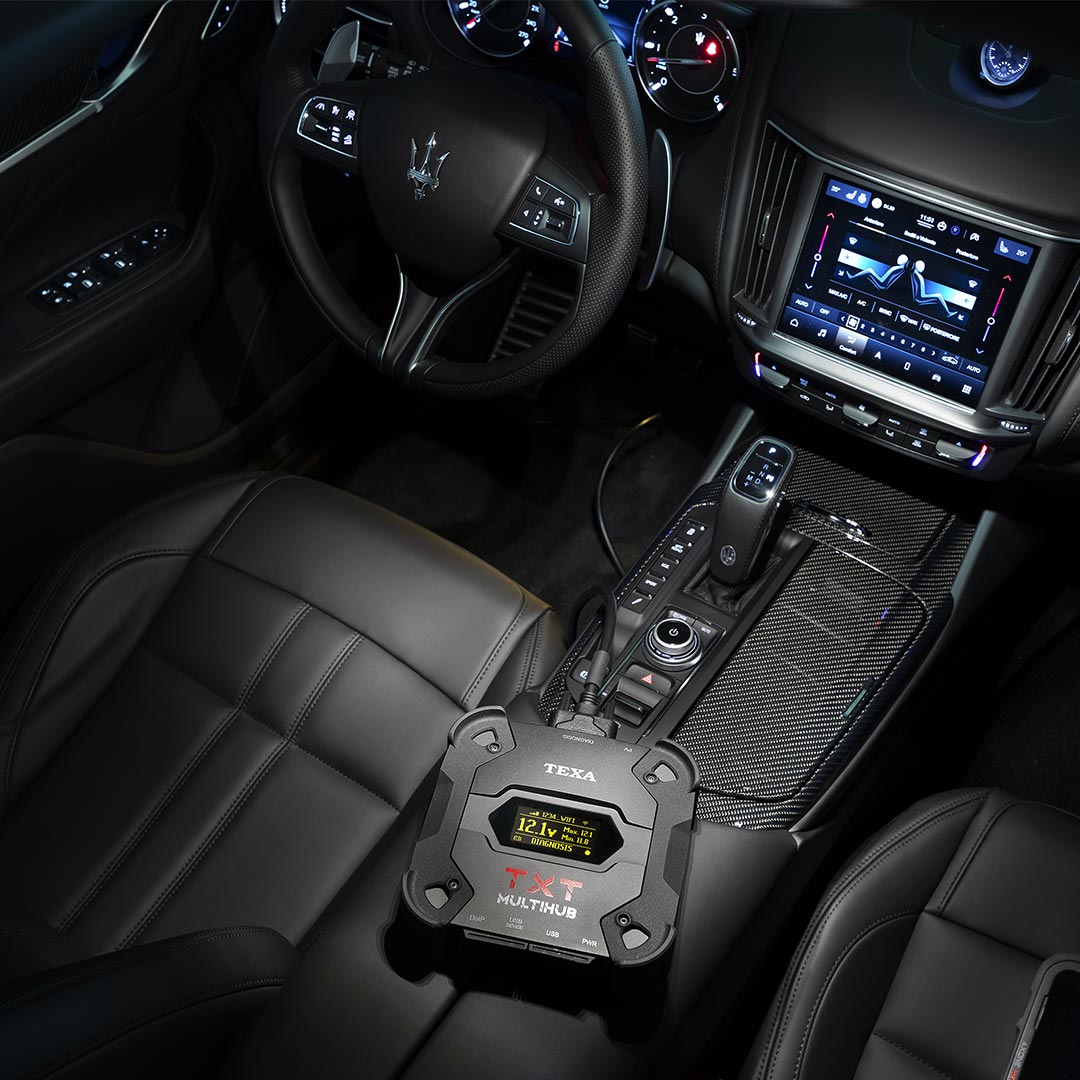

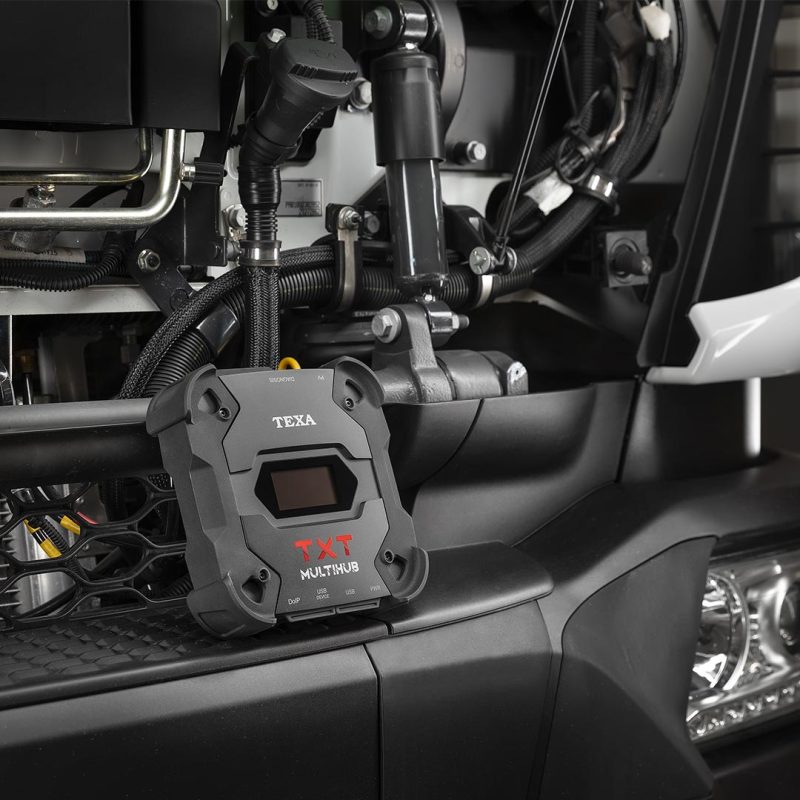

TXT MULTIHUB is equipped with a practical backlit display that gives it great usability and the possibility to view the information based on three types of messages:
communication mode with the display unit
charging voltage of the battery in the vehicle it is connected to
operating status that can be standard diagnosis, DoIP Wi-Fi, DoIP Ethernet, Pass-Thru
Furthermore, it allows having constant control on the tool’s operation: it reproduces more than 40 messages that provide technicians with all the information they need during diagnostic operations.
Battery voltage at a glance
TXT MULTIHUB indicates in the display, in real time, the voltage of the battery in the vehicle it is connected to. This is essential in order to carry out certain diagnostic operations such as an adjustment.
Technical Specifications
Main processor:
• Type: iMX6 1 GHz
• RAM: 512 MByte
• Mass Storage: eMMC 8 GByte
Coprocessor:
• Type: STM32F439 168 MHz
• RAM: 2 MByte SRAM, 8 MByte SDRAM
• Flash: 2 MByte
Power supply connector: PWR: 2.1 DC jack
Power supply: 12 – 24 Vdc (from vehicle battery via OBD connector or specific wirings)
Consumption: 1 A @12 V max
USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)
Bluetooth communication: Bluetooth 5.0 (BDR/EDR/LE)
WiFi communication: WiFi IEEE 802.11 b/g/n 2.4GHz
Operational band: 2400 ÷ 2483.5 MHz
Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)
Diagnostic connectors:
• DIAGNOSIS: DSUB-26HD (ISO 22900-1)
• DoIP: RJ45 (UDP/TCP 13400)
Electronic switch: 2-way, 13 independent positions
Control units reprogramming connector: PV (SAE J2534-1)
User interface: Display OLED 64×128 dot
Operating temperature: 0 ÷ 50 °C
Storage temperature: – 20 ÷ 60 °C
Supported protocols:
• Blink codes
• K, L (with current protection 100 mA), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• Second ISO11898-2 CAN channel
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1
• SAE J1708
• UDP/TCP ISO 13400 (DoIP)
Operating moisture: 10 ÷ 80 % without condensation
Dimensions [mm]: 176,1 x 175,4 x 46,8
Weight: 600 g
IP protection level: IP53 * (*) With properly closed protective caps.
Directives:
RoHS 2011/65/UE
RED 2014/53/UE
2015/863/UE
Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17
Radio systems: ETSI EN 300 328
Electrical safety:
EN 62638-1/AC:2015
EN 62311:2008
