• Super economy model delivered in knock-down form for reduced freight cost.

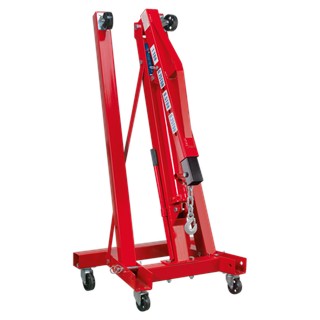

• Fast folding model provides easy storage and transportation.
• Heavy-duty castors.
Original price was: £339.95.£268.99Current price is: £268.99.

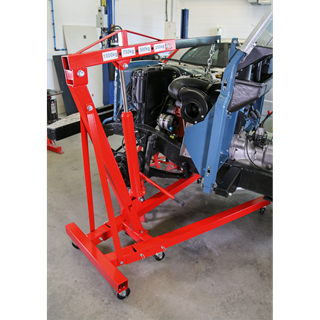

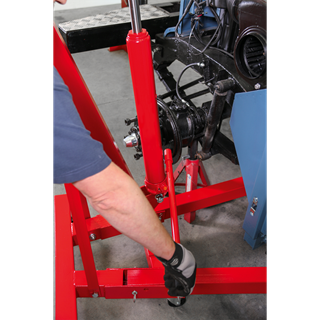

• Super economy model delivered in knock-down form for reduced freight cost. • Fast folding model provides easy storage and transportation. • Heavy-duty castors. • Weighs only 75kg and is perfect for mobile or workshop use. • Side pump access with removable handle.
Height Jib Down: 1390mm
Height Legs Folded: 1440mm
Height of Frame: 185mm
Length Legs Extended: 1620mm
Length of Jib Position 1: 830mm
Length of Jib Position 2: 950mm
Length of Jib Position 3: 1070mm
Length of Jib Position 4: 1190mm
Length of Jib Position 5: n/a
Length: 1620mm
Lifting Capacity in Position 1: 1000kg
Lifting Capacity in Position 2: 750kg
Lifting Capacity in Position 3: 500kg
Lifting Capacity in Position 4: 250kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1820mm
Max. Lift Ht at Jib Position 2: 1935mm
Max. Lift Ht at Jib Position 3: 2030mm
Max. Lift Ht at Jib Position 4: 2150mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 75kg
Rear Width: 700mm
Width Front Frame: 920mm
Width Inside Front Frame: 780mm
