Load Suspension Via Wheels or Sills

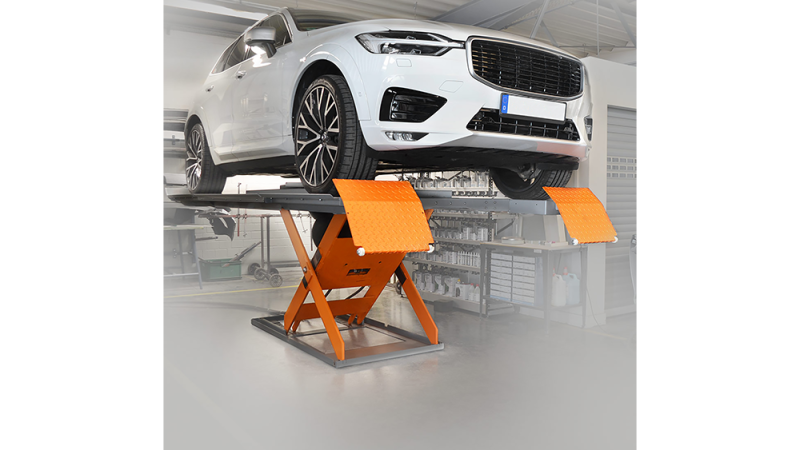

With the HLT lifts, the load can be lifted either standing on the wheels or “wheel-free” via the swivelling support arms.

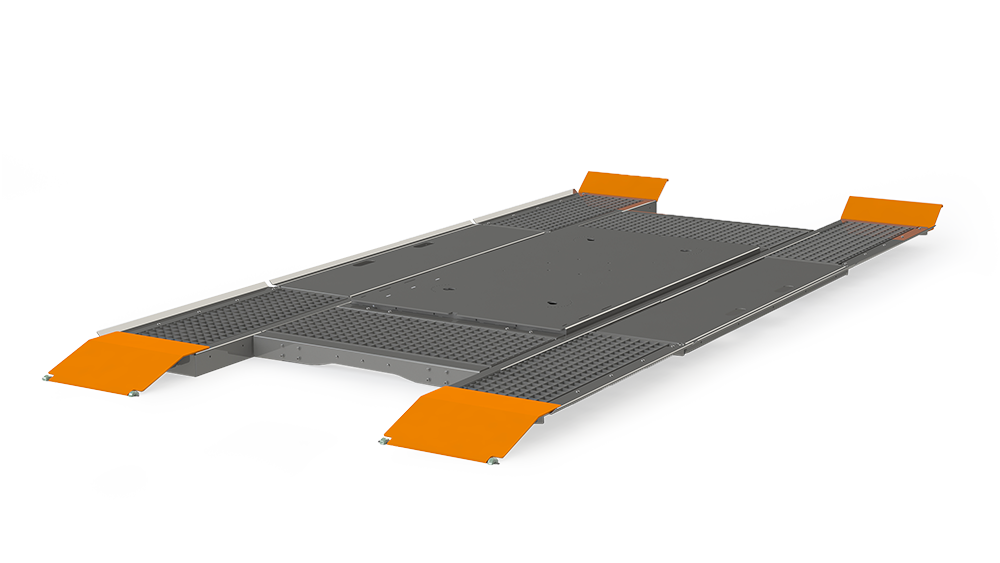

The wheel support surfaces are equipped with grids, and the middle section can be folded down to enable work on the sill.

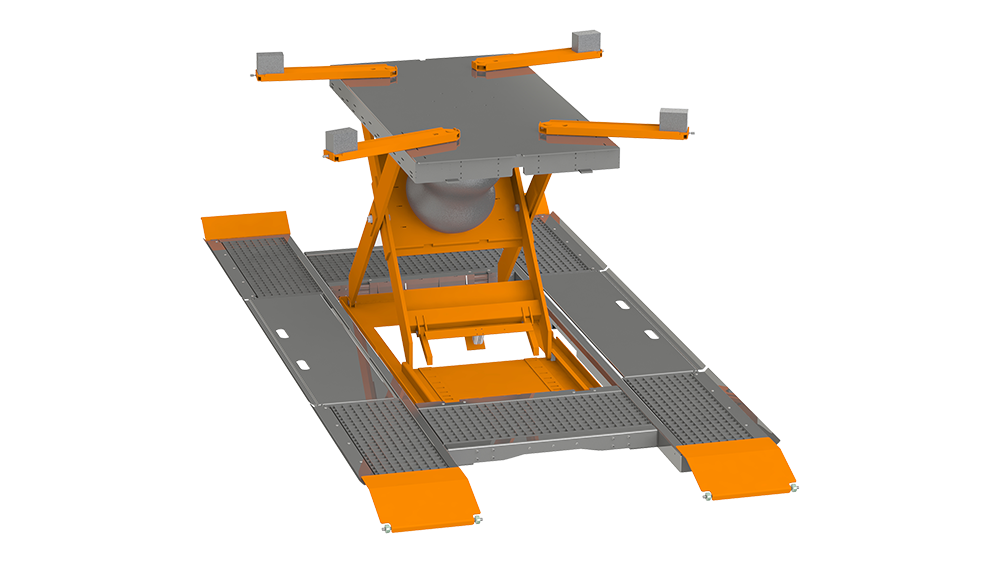

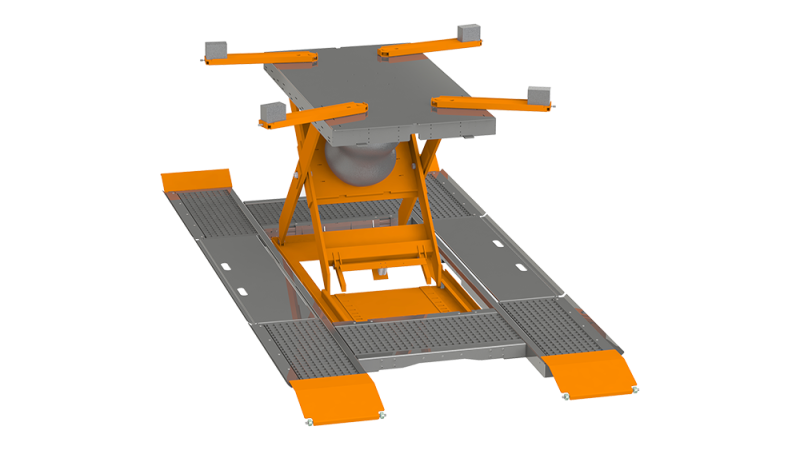

The support arms can be swivelled, have a locking mechanism and can be removed if necessary. In order to lift “wheel-free”, the frame is uncoupled from the platform body in lowered position by means of an easily accessible slide construction.
The load capacity for both lifting options is 3.5 tonnes.
The base frame, the grating and the drive-over protection are galvanised as standard on all lifts.
Attention!
The base frame of the lift must be bolted to the floor to prevent the lift from moving.
• Raise the platform base once and lower it again
• Align the platform
• Screw the platform to the floor to prevent it from moving
Air quality: ISO 8573-1
Details: Pneumatics: P max. 8 bar
Length × width × height: 3980 x 2100 x 114 mm
Mark of conformity: according to 2006/42/EC
Material: Metal, Plastic, Rubber, kunststoff
Max. height: 1050 mm
Max. load capacity: 3500 kg
Operating pressure: 5 bar
Sound pressure level: < 70 dB(A)
Weight: 1100 kg
1 Supplied
